Schottel SRP505 1000 KW

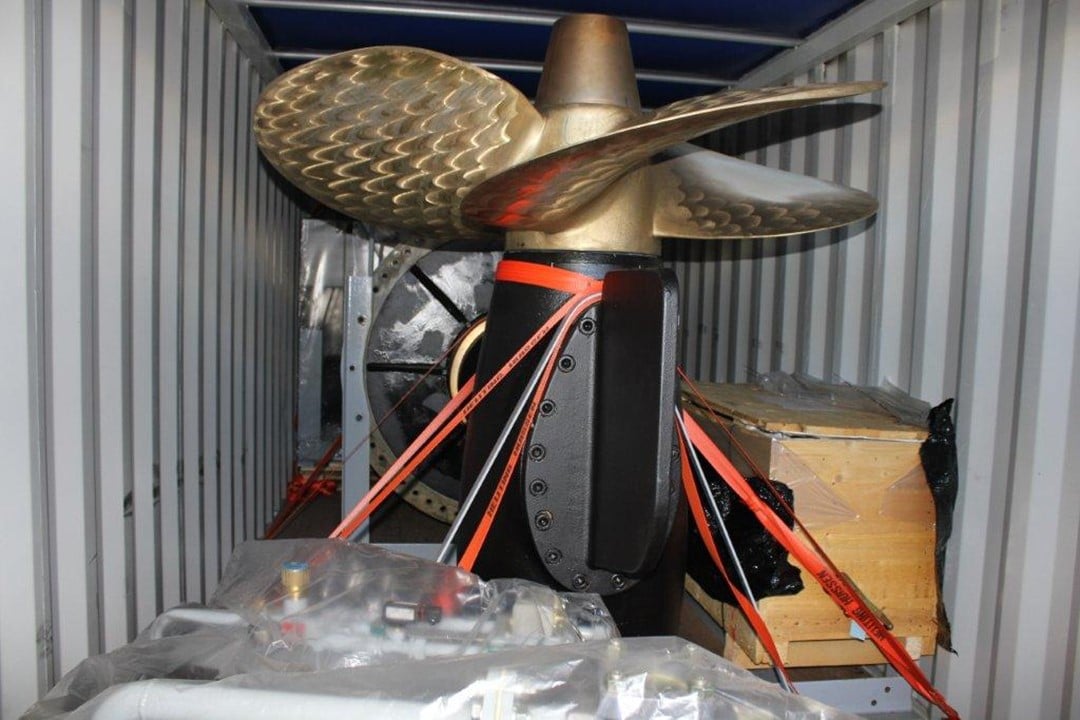

SCHOTTEL rudderpropellers SRP steerable Z-Drive

Type:                                       SCHOTTEL SRP 505 Z-Drive Well Mounting

Max Power input:                     1000 KW

Normal input torque:                7300 NM

Max r.p.m input:                       1650 rpm

Prop Stem Length:                   2.600 mm Approx

Steeringtype:                            2 steering gearboxes with hydraulic motors

Including:                                  Bronze Propeller, mounting plate, seal, and oilheader tank

Electric-hydraulic full follow up 24 Volt remote control steering systems including time dependent emergency steering

Basically consisting of the following components:

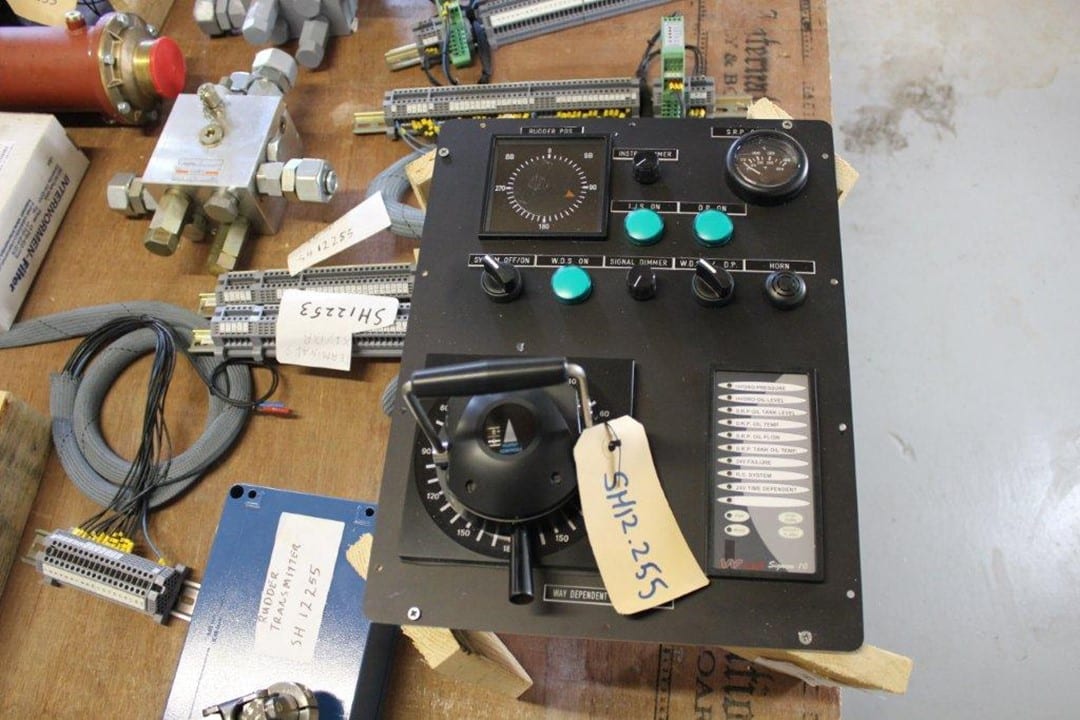

• Steering and instrument panel containing steering rotatable one hand handle unit which allows the operator to control the steering angle, and RPM
• Joystick for emergency steering (black/white)
• Hydraulic Pump (to be mounted on pto from diesel-engine)

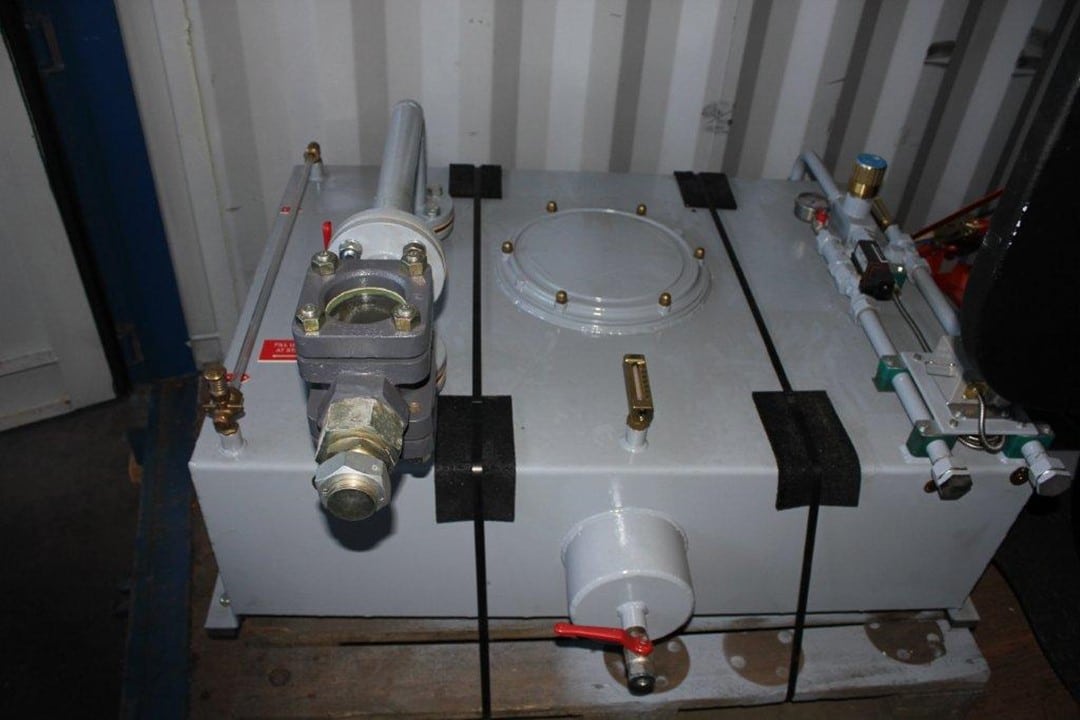

• Hydraulic tank including steering valve, safety valve, level switch, level gauge, return oil filter
• Rudder position – transmitterbox (mounted on the Schottel)
• Relay box equipped with required steering components, relays, fuses and numbered terminal strips rows
• System adapter to DP steering according cos/sin

 Including

• All electric 24 Volts components wired with numbered strip rows
• All hydraulic components built together on hydraulic tank

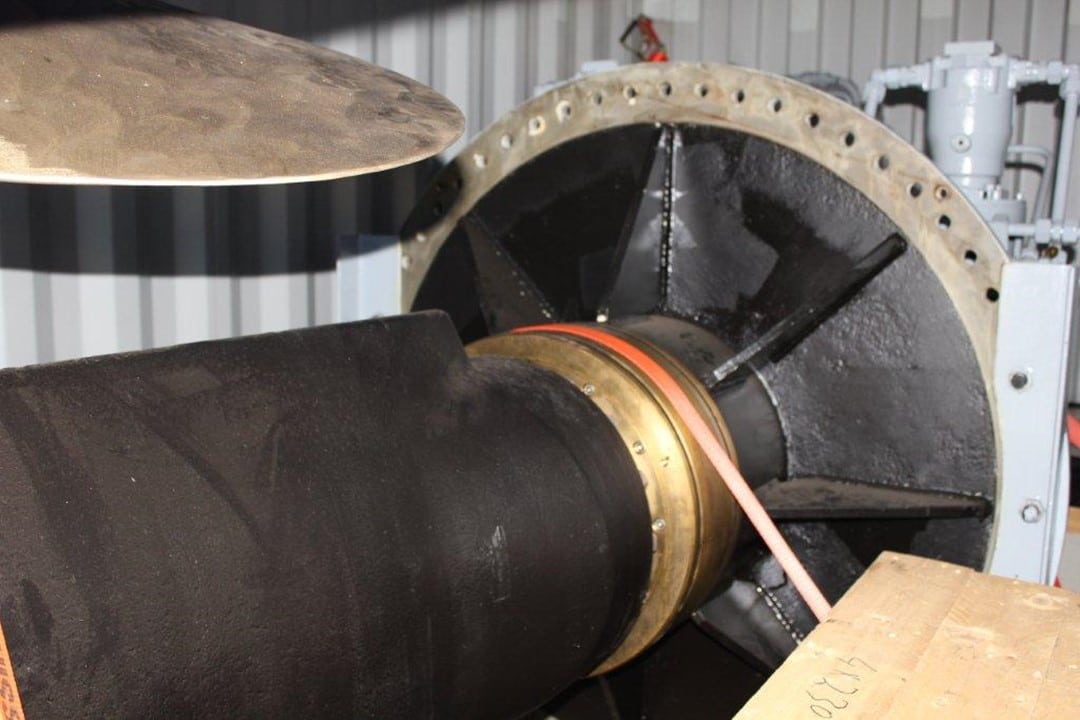

PC PTO-Clutches for the Schottel SRP505

Type:                                               BSD- Rexnord Pneumatic dry-plate clutch

Excluding:                                        Compressor-system to provide airpressure

Including:                                         Brake to hold the Schottel while sailing

Max. torque                                     10,000 Nm
